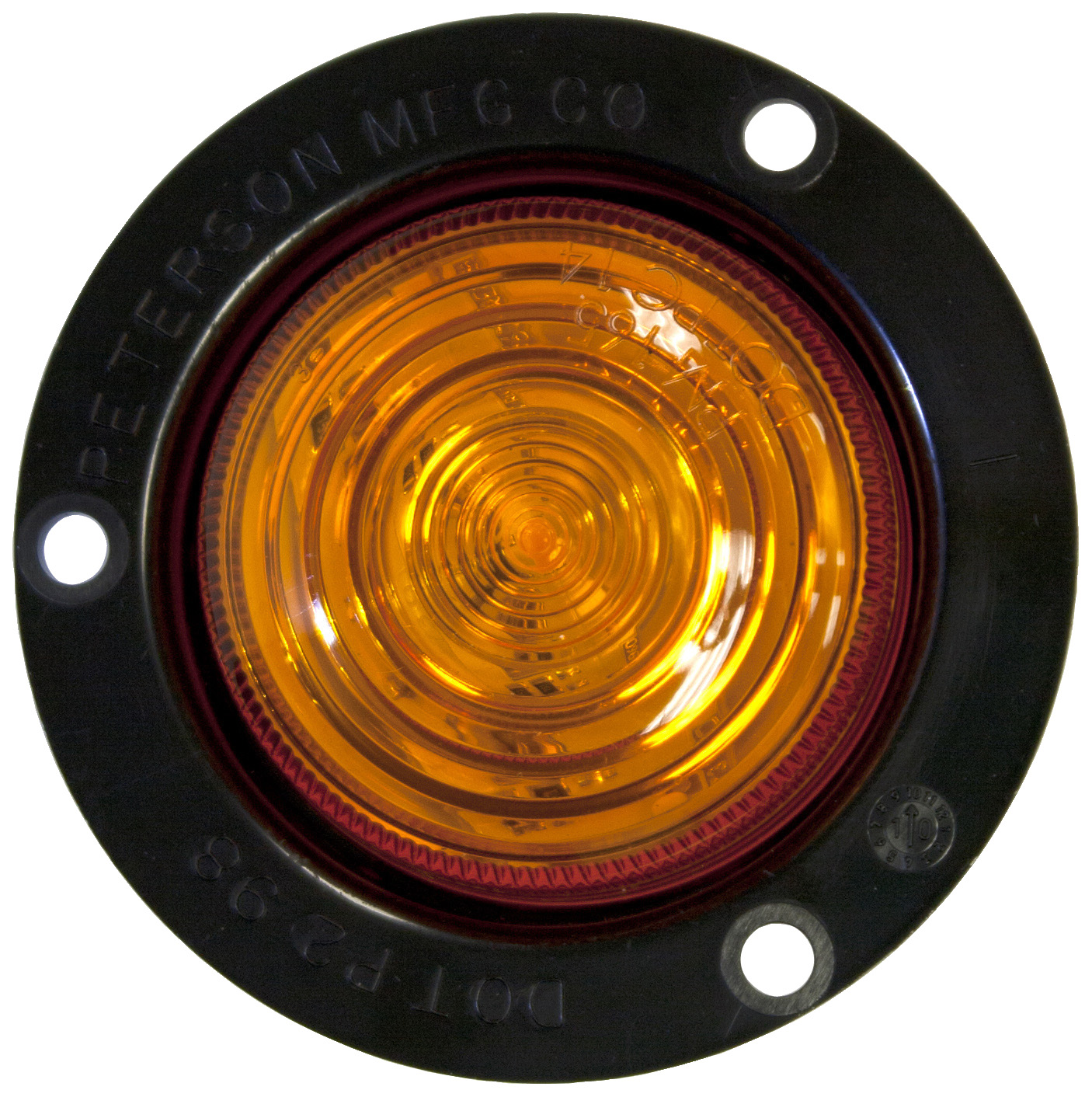

M209FA-MV

LED Marker/Clearance PC-Rated, 2″ Round AMP w/ flange, Multivolt, amber, bulk pack

  • 5 diodes.
  • Round, 2″ diameter.
  • White diodes behind colored lens.
  • 9-32 volt operating range.
  • Assembled in USA.
  • Compatible plug required for installation.
  • Does not require “Top” positioning to meet FMVSS 108 standard.
  • Integral mounting flange welded to housing.

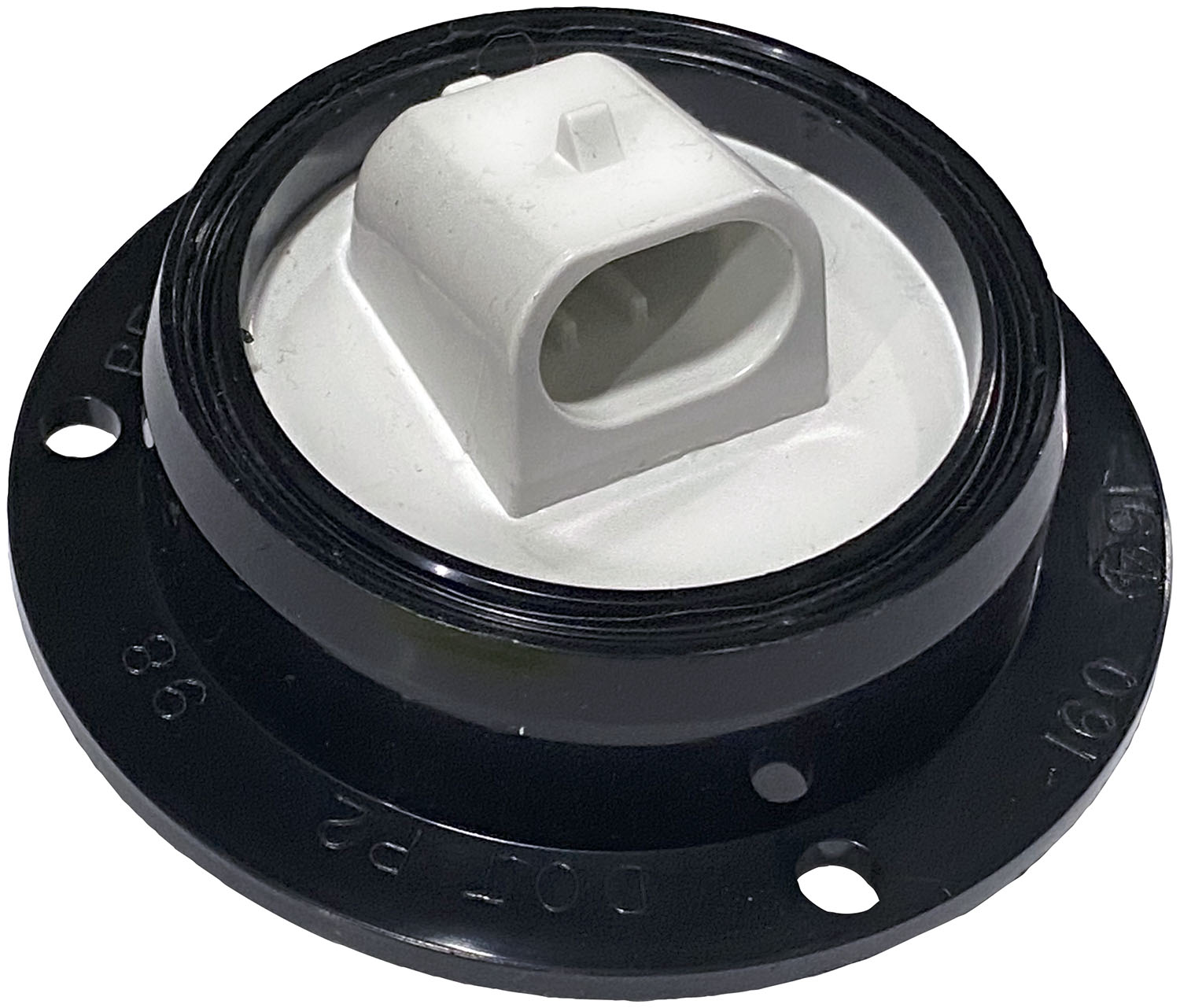

  • Integrated receptacle accepts industry standard 2-wire AMP-style sealed connector.
  • Lumenx® lens and circuitry.
  • PC rated: functions as both clearance & side marker light when mounted at 45° angle.
Bulb Technology
LED
Bulb/Diode Count
5
California Proposition 65
WARNING: Cancer and/or reproductive harm - www.P65Warnings.ca.gov
Container Type
bulk pack
Diameter
2.94 Inch
Family
LumenX
Height
2.94 Inch
Integral Reflex
N
Length
1.52 Inch
Lens Color
amber
Light Color
amber
Marine Use
Y
Maximum Voltage
32 Volts
Minimum Voltage
9 Volts
Mounting Type
flange
Multi-Volt
Y
PC Rated
Y
Regulatory Compliance
DOT
Shape
2-inch round
termination
AMP
Voltage
12V / 24V
Width
2.94 Inch
Minimum Order Quantity
50
