203-3R

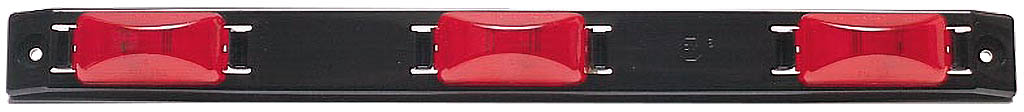

LED ID Bar Light, Submersible, 17″X1.47″, red, poly bag

  • Long life bulb.
  • Field upgradable to LEDs – bar also accepts 203 series on Peterson Master Catalog page 70.
  • Recommended for marine trailer use.
  • Submersible identification bar light for over 80″ applications.
  • Black polycarbonate bar is corrosion-proof with three 150 sealed lights attached.
  • 150 lights snap on/off for easy service.

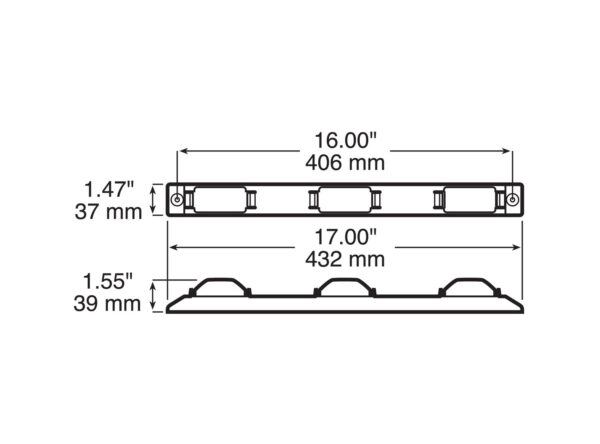

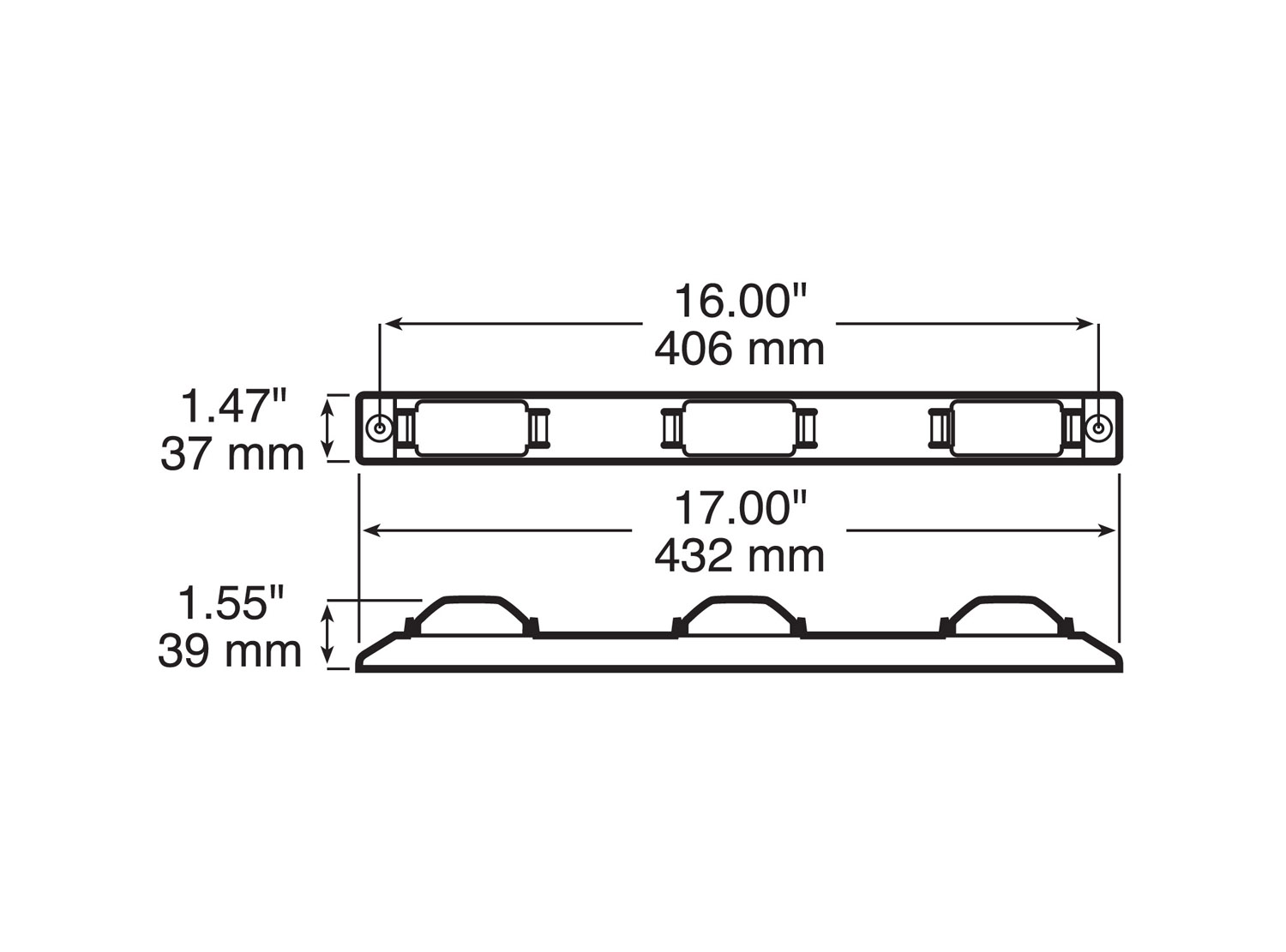

  • Mounts on 16″ centers.
  • 0.20 ” mounting holes accept #10 screws.
  • Includes three-plug harness with two lead wires.
  • All versions have 6″ ground wire w/ ring terminal and 50″ hot wire.
Bulb Technology
LED
Bulb/Diode Count
6
California Proposition 65
WARNING: Cancer and/or reproductive harm - www.P65Warnings.ca.gov
Container Type
poly bag
Family
PM
Filament Quantity
1
Ground Type
wire
Height
1.47 Inch
Length
17 Inch
Lens Color
red
Light Color
red
Marine Use
Y
Maximum Voltage
16
Minimum Voltage
9
Mounting Centers
16 Inch
Mounting Type
surface
Multi-Volt
N
Regulatory Compliance
DOT
Removable Lens
N
Replaceable Bulb
N
Shape
bar
Voltage
12 Volts
Width
1.55 Inch
termination
stripped wire
Minimum Order Quantity
6
